  • Heat Meter

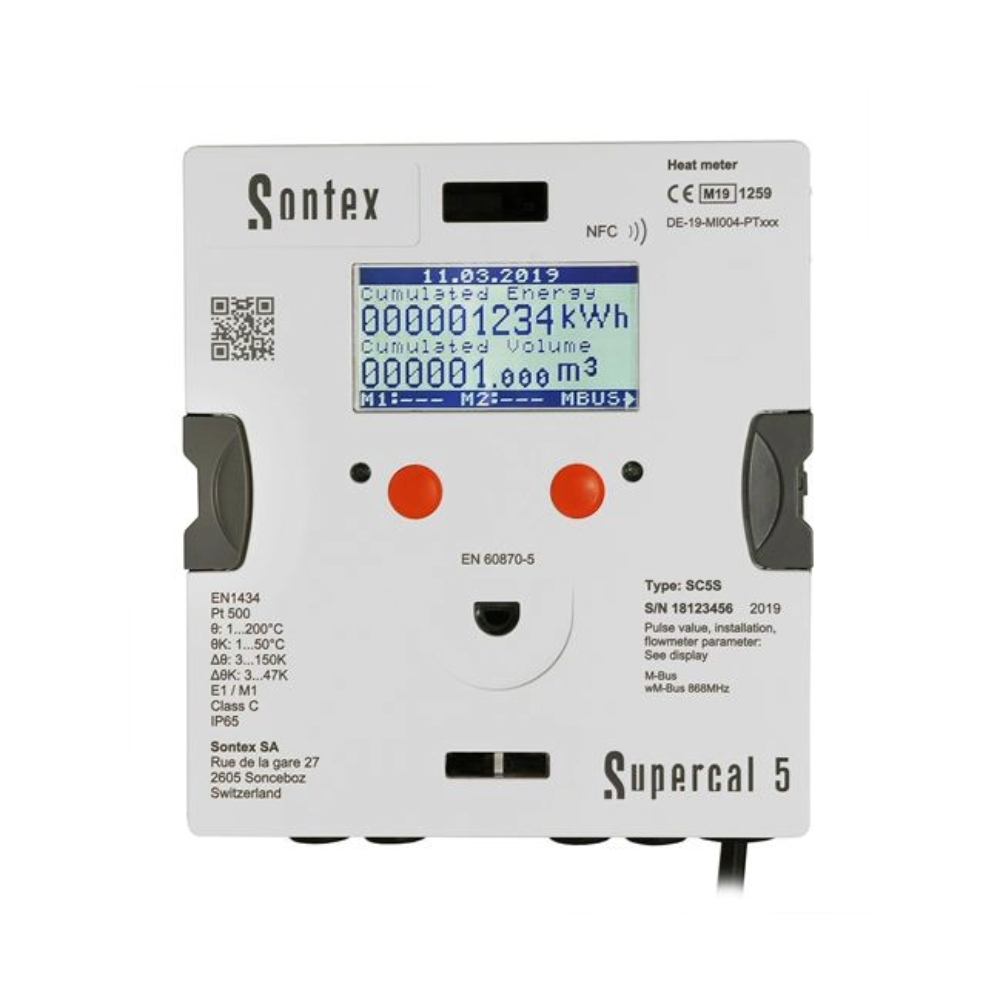

The Supercal 5 incorporates state-of-the-art technology, this next generation calculator boasts many future proof features, all set within a user-friendly interface.  Features include configuration via NFC interface, modular concept with 2 card slots, several tariffs and LoRaWAN. It can also be supplied with Wireless M-Bus for data transfer.

The Supercal 5 succeeds the highly successful and respected Supercal 531, the new series integrator is characterised by the latest multi-functional technologies, it meets customer-specific needs such as a simplified system integration, tariff and data logger functions, universal data transfer and connection to system processors. The Supercal 5 is future-ready, it has been designed with the future in mind, combining the latest technology to create a modern heating and cooling meter that will serve a wider range of applications.

Its volume input can be combined with mechanical, magnetic-flow, ultrasonic or fluidic oscillators flow sensors. It has additional pulse inputs which allow the connection of hot or cold water, gas, oil, and electricity meters, any meter with a pulsed output. Thanks to its extensive range of options for data communication, as well as its flexibility for collecting and recording dynamic plant data, the Supercal 5 can also lend itself well to applications in district heating networks and industry installations.

The Supercal 5 is equipped with a battery as standard, other power supply modules are also available. The Supercal 5 is compatible with the full-size range of Superstatic 440 meters – DN15 to DN500.

  • Supercal 5 - 2- or 4-wire temperature sensors without any configuration
  • 2 pulse/state inputs and 2 pulse/state open-drain outputs
  • Battery or mains powered for increased flexibility
  • Calculator for heat meters, cooling meters or combined heat/cooling meters
  • Exchangeable upper part (MET) while wiring remains in place, LoRaWAN
  • Modules can be retrofitted or replaced at any time without affecting the approval
  • Native M-Bus interface according to EN 1434-3
  • Optical interface according to IEC 62056-21:2002
  • Self-recognition of optional modules
  • User-friendly menu navigation

  • Energy Saving
