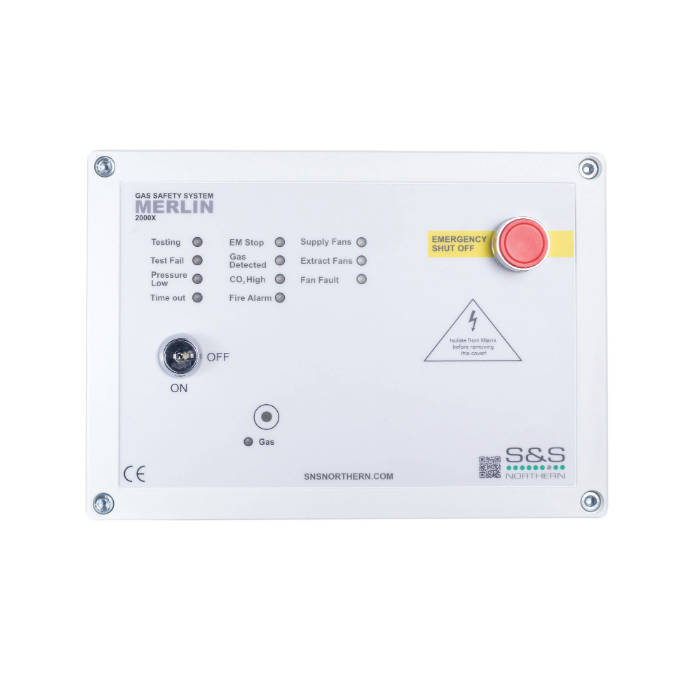

Merlin 2000X Panel (incl. Gas Pressure Transducer)

Panel Commercial Kitchen Protection Gas Pressure Proving Ventilation Interlock Monitor Up To 4 Fans Built In Current Monitors External Gas Detector CO2 Monitor interface Gas Isolation
  • Merlin 2000X Panel (incl. Gas Pressure Transducer)

The Merlin 2000X is the ultimate gas pressure proving & ventilation interlock system, specifically designed for use in commercial kitchens to meet BS6173. This panel is designed for use when the kitchen appliances do not have flame failure devices fitted, therefore gas proving is a requirement.

The Merlin 2000X system uses two unique built in current monitors which displays the exact fan current, in order to interlock with the ventilation with precision accuracy. The system is compatible with both current monitors and air pressure differential switches in order to interlock with up to 4 fans.

  • Gas Pressure Proving feature provides a tightness test on the pipework downstream of the gas valve
  • Ventilation interlock system which isolates the fuel supply if the ventilation fails
  • Monitor up to 4 extract or supply fans
  • Internal fan current monitors
  • System can be used with a variety of gas detectors
  • Is compatible with a CO2 Monitor
  • Gas Isolation
Width: 254mm
Height: 178mm
Depth: 62mm
  1. 2000X Product Datasheet.pdf Download
  2. 2000X CAD File.dwg Download
  3. 2000X CAD PDF File.pdf Download
  4. SNS Merlin 2000X Gas Pressure Proving BIM File.rfa Download
  5. 2021 S&S Commercial Kitchen Brochure.pdf Download
