MerlinGuard

SKU: MerlinGuard Category:

Description

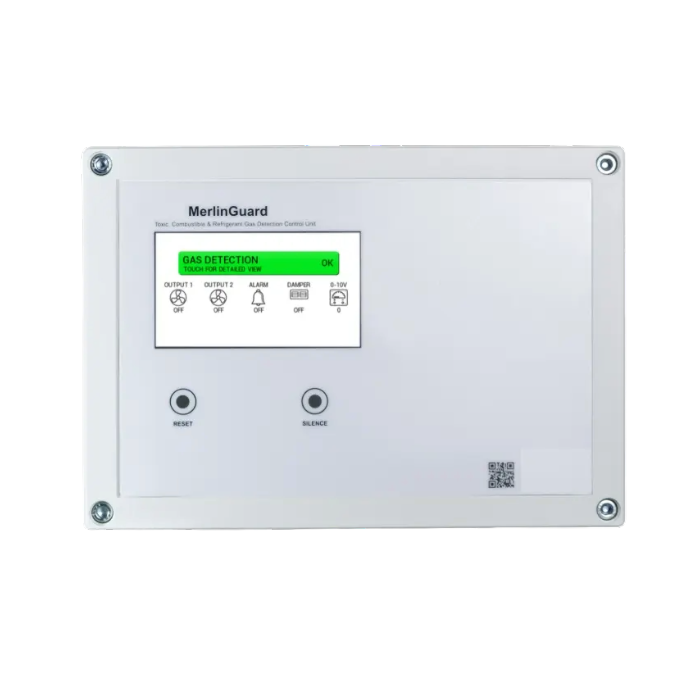

The MerlinGuard is a gas detection and ventilation panel compatible with up to sixteen (16) refrigerant x detectors. It offers a pre-programmed control panel with features such as fan control, alarm damper control, and seamless integration with Building Management Systems (BMS). The system can also be used to monitor other x range detectors by S&S Northern.

The panel includes four output options for pre-alarm and high-alarm conditions, along with a 0-10V output for BMS integration or fan control via VFD.

Specification
Mechanical Environmental
Mounting Wall Mounted Operating Temperature 14 to 122°F
Dimensions (H x W x D) H:178mm x W:254mm x D:76mm (7 x 10 x 3 inches) Storage Temperature 32–86°F
Weight (Max) 36oz Max Humidity 0 to 95% RH (continuous), non-condensing
Enclosure ABS UL Flame Retardant Atmospheric Pressure 80 to 110Pa
Power Rating Nominal 110–120VAC (90–250V AC), 50–60Hz Altitude <6562ft
Internal Fuse T3.15A L250V Installation Category (110V Voltage) II (Class 2), Pollution Degree 2
Communication 16 Channels Max Digital Networks MODBUS RTU
Power Consumption Max 14.5W Full Load Relay Outputs 4x Dry Contacts 6A @ 250VAC (non-latching)
1x 24VDC Switching
1x 24VDC Permanent
1x 0–10V Linear
User Interface Cable Specifications
Language English Power #18–12AWG Tinned Copper
Current Rating: 1A Minimum
Voltage: 100–250V~
Wire Stripping Length: 6–7mm
Display 4.3″ TFT Touch Screen Relays #18–12AWG Tinned Copper
Current Rating: 6A
Voltage: 100–250V~
Wire Stripping Length: 6–7mm
Indication TFT Visual
Green: Normal
Yellow: Pre-Alarm
Amber: Alarm Delay
Red: Alarm Relay Outputs On/Off Gas Detection Status
Detector For field connections, use wires suitable for at least 90°C (194°F).
#15AWG Power Pair
#18AWG Data Pair – Tinned Copper
Buttons Silence Alarm and Reset System Other #18–14AWG Tinned Copper
Conformance
Safety & Electromagnetic Compatibility IEC 61010-1:2010 + AMD1:2016;
EN 61010-1:2010 + A1:2019;
UL 61010-1/2012/R:2019-07;
CAN CSA C22.2 No. 61010-1-12/A1:2018-11;
EMC EN 61326-1:2013
