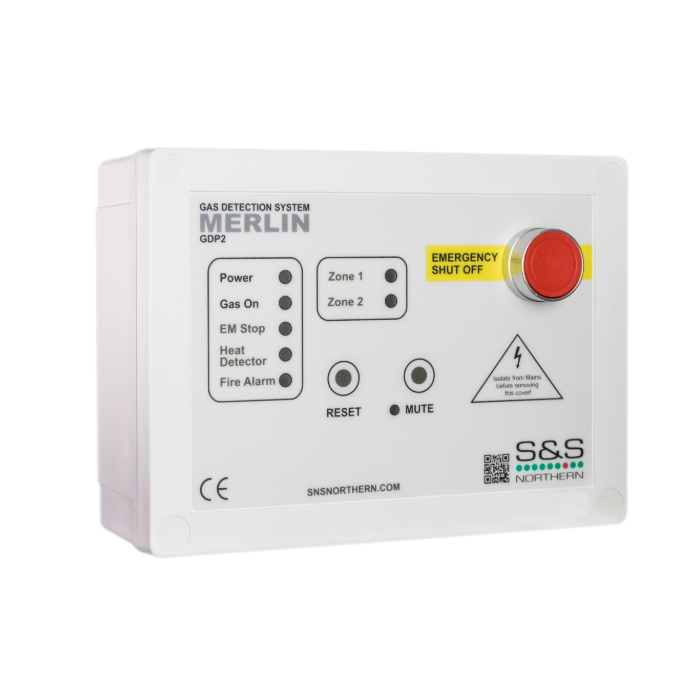

Merlin GDP2 (2 Channel Detector)

SKU: GDP2 Category:

Additional information

Detector 1

, , ,

Detector 2

, , ,

An expansion of the excellent Merlin GSP1 the GDP2 operates on the two zone gas detection having the ability to connect two remote detectors for either multi-area or multi-gas detection. The most common detectors in use are those for carbon monoxide, natural gas or LPG. In combination with this the Merlin gas detection range can incorporate any number of fusible links wired in series to the same terminal for added protection of both property and people.

• BMS Normally Closed or Normally Open and Common
• 2 Zone gas detection system allows multi-gas detection
• Will accept remote emergency knock-off buttons
• Clear LED display for system indications
• Easy to Install
• Can be connected to heat detectors and Fire Alarms
• Covered by S&S Northern ltd 3 year warranty

• Height – 140mm
• Width – 190mm
• Depth – 62mm

S&S Northern Product Catalogue
Merlin GDP2 Wiring Diagram
Merlin GDP2 Product Datasheet
Merlin GDP2 Technical
Gas Detection Only Specification
Merlin GDP2 CAD File – DWG
Merlin GDP2 CAD File – PDF
