Product Description

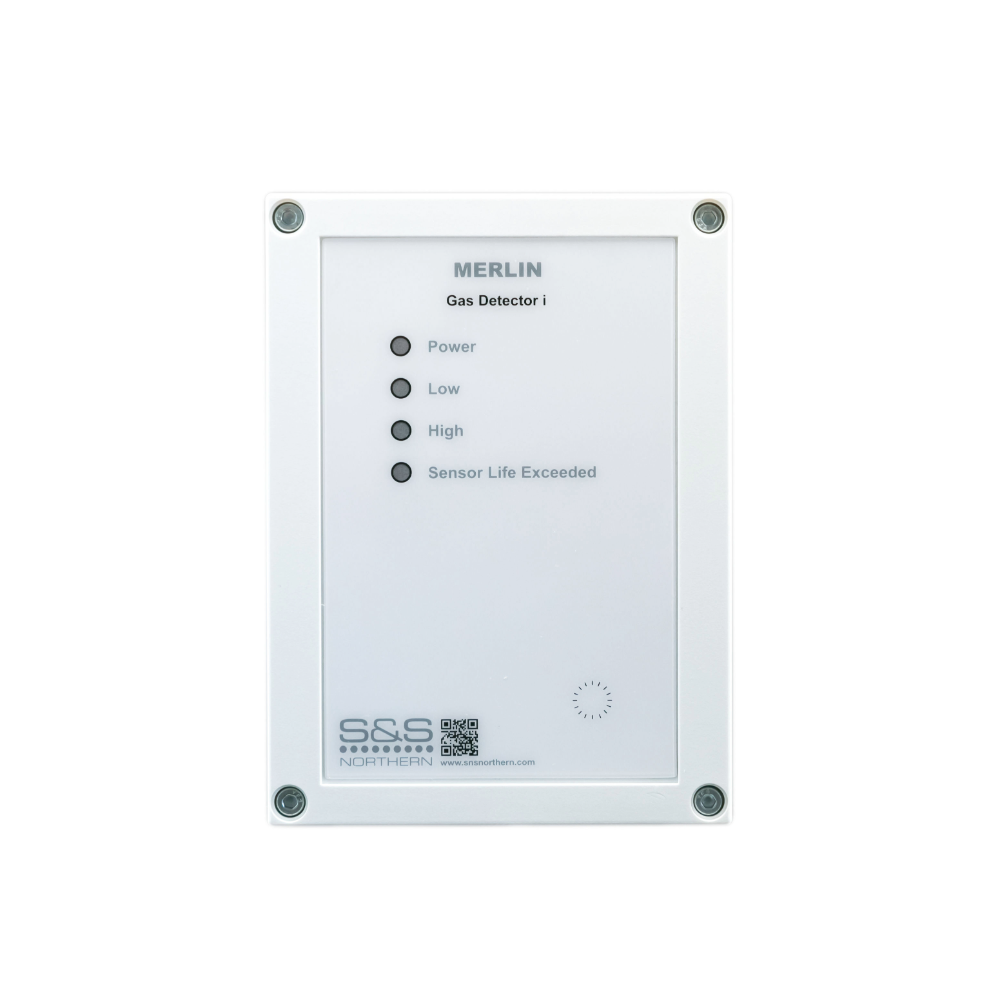

The i range of gas detectors are used in various applications such as boiler/plant rooms, hospitals, laboratories and high rise buildings. These sensors are specifically built to work with all Merlin control panels and can also be used direct with BMS control panels. The traffic light indicator will summarize the gas levels:
Green
Safe
Yellow
Attention
Red
Danger
Natural Gas
Carbon Monoxide
LPG
Carbon Dioxide
Refrigerant
Oxygen
Nitrogen Dioxide
Hydrogen
These recommended heights may vary based on air flow and temperature conditions in addition to the proposed application and location:
Target Gas
Typical Detector Position
Natural Gas/Methane (NG/CH4)
High Level - 300mm (1ft) from ceiling
LIquid Petroleum Gas (LPG)
Low Level - 300mm (1ft) from ground level
Carbon Monoxide (CO)
Breathing Zone - 1700mm (5ft 6'') from ground level
Hydrogen
High Level - 300mm (1ft) from ceiling
Oxygen (O2)
Breathing Zone - 1000-1500mm (3-5ft) from ground level
• 24VAC or DC Powered
• Traffic Light Indication
• Built-In Audible Alarm
• Three Alarm Relay Outputs
• 0-10VDC Variable Output
• BMS standalone compatibility
• Various gas detector types available
• End of Life Reminder
• Covered by S&S Northern Ltd 3 year warranty.
• Traffic Light Indication
• Built-In Audible Alarm
• Three Alarm Relay Outputs
• 0-10VDC Variable Output
• BMS standalone compatibility
• Various gas detector types available
• End of Life Reminder
• Covered by S&S Northern Ltd 3 year warranty.
• Height – 151mm
• Width – 111mm
• Depth – 50mm
• Width – 111mm
• Depth – 50mm
