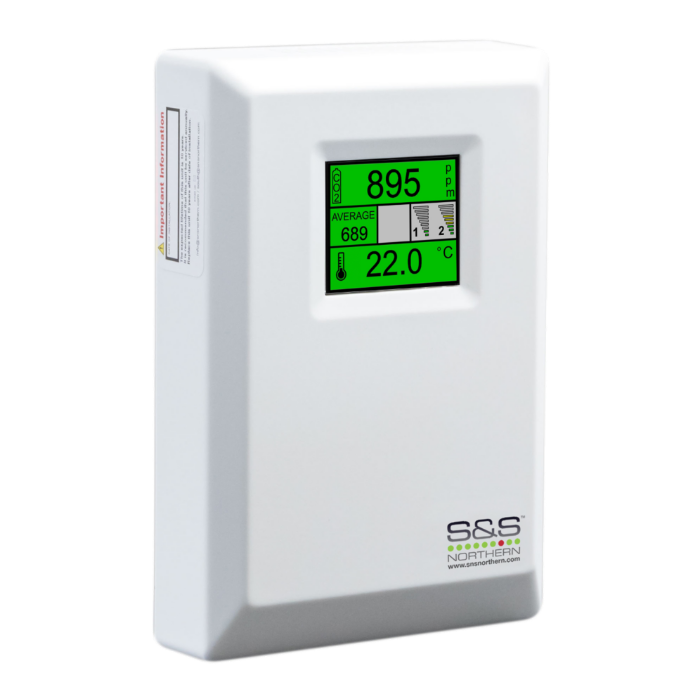

The Merlin CO2-X is designed to monitor carbon dioxide (CO2) in the air and temperature.
The monitor has a digital traffic light style display indicating the carbon dioxide levels and temperature in the area.
When CO2 gas or temperature reaches alarm state – this devices is able to automatically drive ventilation reducing CO2 and/or temperature.
For further information on our Merlin CO2 X please refer to our product data sheet.
| Specification | |||
|---|---|---|---|
| General | Electrical | ||
| Product | CO2X | Max. Power Consumption | 2.16W |
| Indicators (1.8″ TFT Screen) | Green (Safe), Yellow (Special State) & Red (Alarm). Detected CO2 Level, Time Weighted Average CO2 Level (TWA), Temperature, Mute, Ventilation Boost Active, End of Life. | Power Voltage Input Range | 100–240V AC 50–60Hz or 12–24VDC |
| Screen Brightness | Low – Medium – High (Plus Screen Saver) | Gas Valve Input | 100–240VAC |
| Mounting | Wall Mounting | CO2 Pre Alarm Relay Output | Max 0.5A Signal |
| CO2 Alarm Relay | Max 3A @ 240V | ||
| Fan Enable Relay Output | Max 0.5A Signal | ||
| Terminal Wire Ratings | Copper 18AWG (0.75mm²) Min. 14 x screw terminals | ||
| Internal Fuse | 0.5A / 250V AC | ||
| Construction | Environmental | ||
| Dimensions (H x W x D) | H:140mm x W:95mm x D:30mm (5.51 x 3.74 x 1.18 inches) | Ingress Protection | IP40 |
| Unit Weight (Approx.) | 0.08kg | Storage Conditions | Dry. Temp: -10 ~ 50°C / 14 ~ 122°F; 30 ~ 80% RH |
| Housing Material | Polylac – PA765 | ||
| Temperature Sensor Specification | Carbon Dioxide Sensor Specification | ||
| Sensor Type | Linear Active Thermistor Integrated Circuit | Factory Conditions | 25°C ± 5°C / 77°F ± 41°F (40–70% RH) |
| Measuring Range | 0–95°C / 0–203°F | Sensor Operating Temperature | -10°C ~ 50°C (14 ~ 122°F) |
| Accuracy @ 25°C / 77°F | ± 2°C | Sensor Operating Humidity | Continuous 30–80% RH Non-Condensing |
| Resolution | 0.1°C / °F | Sensor Operating Pressure | Normal Atmospheric Pressure ± 10% |
| Compliance | |||
| CE / UKCA | BS EN 50270 / BS EN 61010-1 | ||
