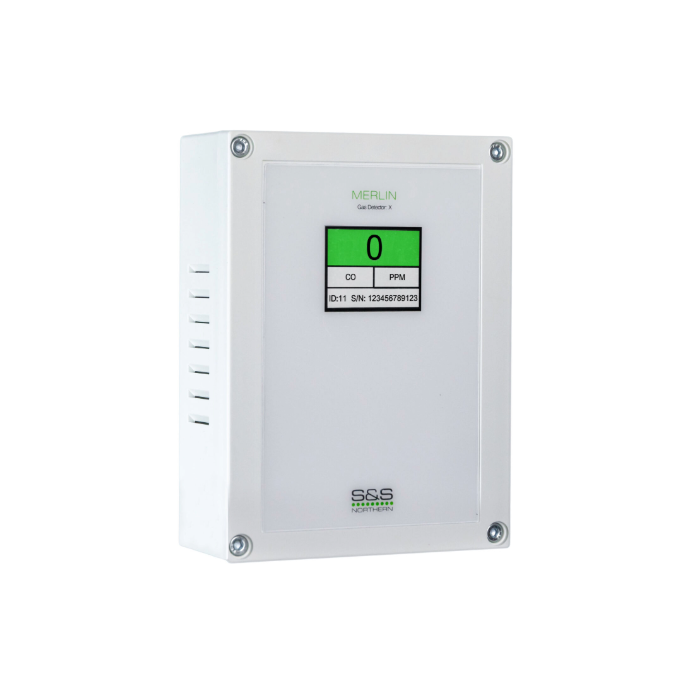

Merlin Gas Detector X


The X range of S&S detectors work in combination with the S&S Merlin range of Gas Detection panels and Safety Systems. Compact, modern, digital design makes the units aesthetically pleasing and easy to install.

For further information on our Merlin gas detectors please refer to our product data sheet.

These recommended heights may vary based on air flow and temperature conditions in addition to the proposed application and location:

Target Gas
Typical Detector Position
Natural Gas/Methane (NG/CH4)
High Level – 300mm (1ft) from ceiling
Liquid Petroleum Gas (LPG)
Low Level – 300mm (1ft) from ground level
Carbon Monoxide (CO)
Breathing Zone – 1700mm (5ft 6”) from ground level
High Level – 300mm (1ft) from ceiling
Oxygen (O2)
Breathing Zone – 1000-1500mm (3-5ft) from ground level

• Low level & high level alarm.
• Traffic light style gas level display indicator.
• Straightforward to install.
• Can work in conjunction with other Merlin Gas Safety Systems to ensure maximum safety.
• Modbus RTU compatible
• Built in test button for onsite commissioning
• Covered by S&S Northern Ltd 3 year warranty.

• Height – 140mm
• Width – 95mm
• Depth – 30mm
